Vibrating Mine Screen Mesh , Quarry Screen Mesh In Hook Edge

Product Categories
Hebei Xingkuan wire mesh Tech co .,ltd
Contact Now

Vibrating Mine Screen Mesh , Quarry Screen Mesh In Hook Edge

Brand Name : Xingkuan Tech

Model Number : Mine Screen Mesh/Quarry screen mesh /Vibrating Screen Mesh in hook edge

Certification : Bv ,sgs , ce , Iso

Place of Origin : Hebei ,China

MOQ : 1sheet or 1 roll

Price : Negotiate

Payment Terms : L, L/C, T/T

Supply Ability : 10000m2/ week

Delivery Time : 7-15 working days

Packaging Details : Pallet , steel rope , or as per request !

Item : Mine Screen Mesh/Quarry screen mesh /Vibrating Screen Mesh in hook edge

Material : 45#,50#,55#,60#,70#, 65Mn , stainless steel.

Technology : wire crimped cut and machine weaving

Wire diameter range : 0.5mm-12.5mm

Aperture : 0.45mm-100mm

Width : 1-6m

Length : 1-200m ( sheet : 2m ) , roll (200m)

Edge preparation : Plain, bent, reinforced shroud, welded shroud, bolt shroud, etc

Contact Now

Mine Screen Mesh/Quarry screen mesh /Vibrating Screen Mesh in hook edge

Descriptions :

Mining, quarry screens are available in rolls or standard panels or cut to size with or without hook strips. woven wire vibrating screen mesh has coarse wire diameter and large opening size.Vibrating screens for wet and dry applications, different wires (geometrical models wire, perforated metal sheets, bars, circle, square or rectangular) are available in all sizes. Or you describe your requirement and make product exactly as your want .We offers a wide range of heavy-duty wire mesh, woven wire screens of high tensile steel or stainless steel for mining ,quarry industries.

Quick detail :

  • Material :45#,50#,55#,60#,70#, 65Mn , stainless steel.
  • Wire diameter : 0.6mm-12.8mm
  • Aperture /Opening :0.45mm-100mm
  • Width : upto 6m
  • Length: on request and need to consider loading conveience .
  • Edge : here we would like to introduce the bent or hook edge ( plain /raw or wrap plate edge is aso available )
  • Features :
    1. High tensile strength.
    2. Abrasion and wear resistance.
    3. Impact resistance.
    4. Acid and alkali resistance.
    5. Various weaving types to fit different materials.
    6. Different hook types for easy installation and fixation.
  • Parts of typical paprameters of screen mesh :
Opening (Aperture) Wire Diameter Open Area Approx. Weight
mm inch mm percentage kg/M2
19.05 3/4 6.0 58% 18.3
22.23 7/8 6.0 62% 16.2
25.4 1 6.0 65% 14.6
27 1-1/16 6.0 67% 13.9
28.58 1-1/8 6.0 68% 13.2
31.75 1-1/4 6.0 71% 12.1
28.58 1-1/8 7.0 65% 17.5
31.75 1-1/4 7.0 67% 16.1
38.1 1-1/2 7.0 71% 13.8
25.4 1 7.0 61% 19.2
28.58 1-1/8 8.0 61% 22.2
31.75 1-1/4 8.0 64% 20.4
38.1 1-1/2 8.0 68% 17.6
41.28 1-5/8 8.0 70% 16.5
44.45 1-3/4 8.0 72% 15.5
50.8 2 8.0 75% 13.8
25.4 1 8.0 58% 24.3
31.75 1-1/4 9.0 61% 25.2
38.1 1-1/2 9.0 65% 21.8
41.28 1-5/8 9.0 67% 20.5
44.45 1-3/4 9.0 69% 19.2
50.8 2 9.0 72% 17.2
57.15 2-1/4 9.0 75% 15.6
63.5 2-1/2 9.0 77% 14.2
50.8 2 9.0 72% 17.2
57.15 2-1/4 10 72% 18.9
63.5 2-1/2 10 75% 17.3
76.2 3 10 78% 14.7
88.9 3-1/2 10 81% 12.8
101.6 4 10 83% 11.4

Applications :

Wire screens are best suited for the screening of abrasive materials due to their high wear rate. High-tensile screens serve many mining and quarry applications, including the screening of all types of minerals, soil, sand and stone crushing. The screening media is ready for installation on machines of all types and ideal for many industries: mineral processing, cement, chemical, gravel, sand, coal, iron ore and many more.

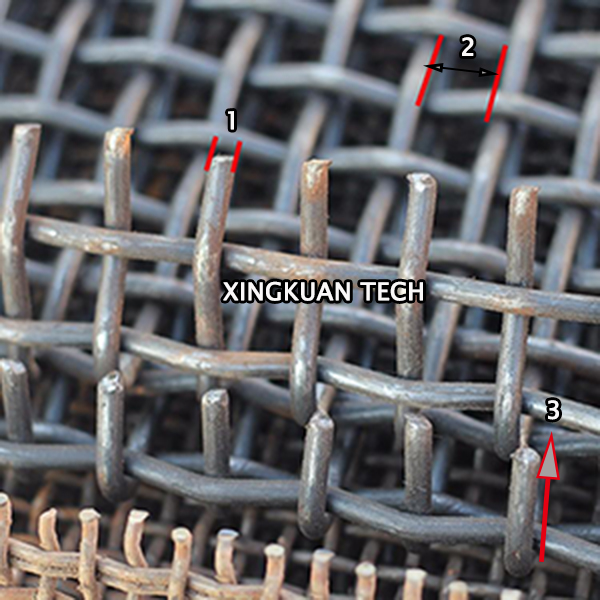

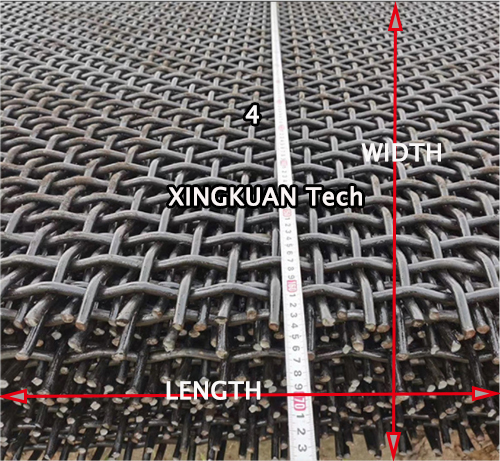

Vibrating Mine Screen Mesh , Quarry Screen Mesh In Hook Edge Vibrating Mine Screen Mesh , Quarry Screen Mesh In Hook Edge

Notice :

We have a comprehensive range of hi-tensile woven wire. Stock material is available for production into hooked edge screens on demand.we also offers a range of stainless steel woven wire material in a range of weave patterns.

Please Advice us the details to get a quotation.
(1) Material
Wire diameter (MM or gauge)
(2) Hole size/ Aperture (mm or inch)
(3) Edge treatment: Hook or not
drawing is better
(4) Panel size (mm) or roll size

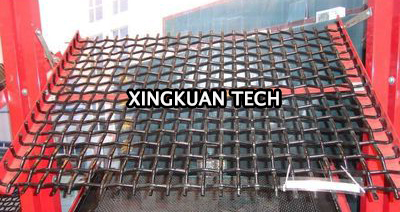

Vibrating Mine Screen Mesh , Quarry Screen Mesh In Hook Edge Vibrating Mine Screen Mesh , Quarry Screen Mesh In Hook Edge

Edge type :

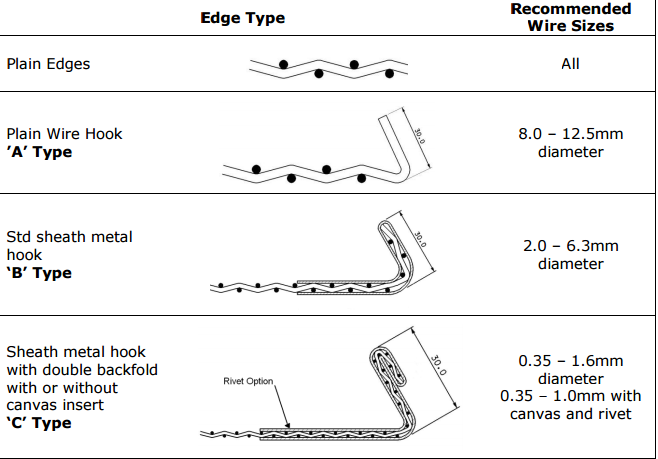

Side Edge Hooks: Suitable for most stationary inclined and horizontal screens

Vibrating Mine Screen Mesh , Quarry Screen Mesh In Hook Edge

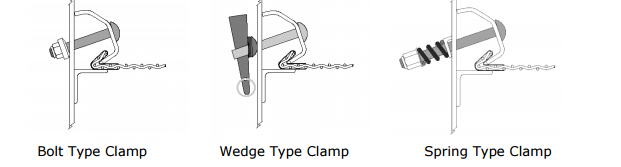

Different Side Clamping methods:

Vibrating Mine Screen Mesh , Quarry Screen Mesh In Hook Edge

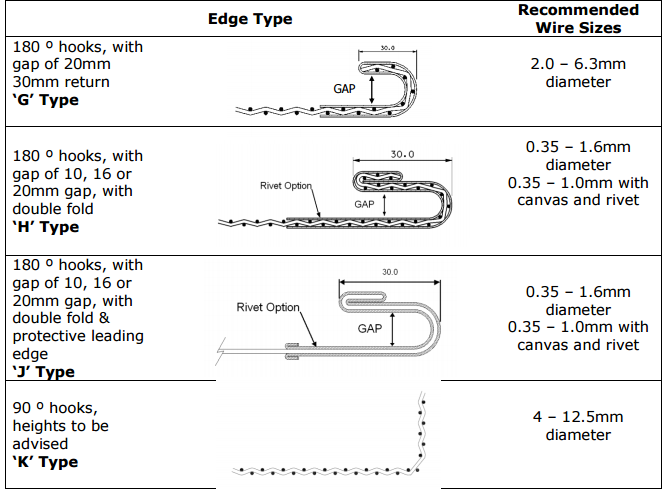

End Tensioned Hooks: Suitable for most mobile screens

Vibrating Mine Screen Mesh , Quarry Screen Mesh In Hook Edge

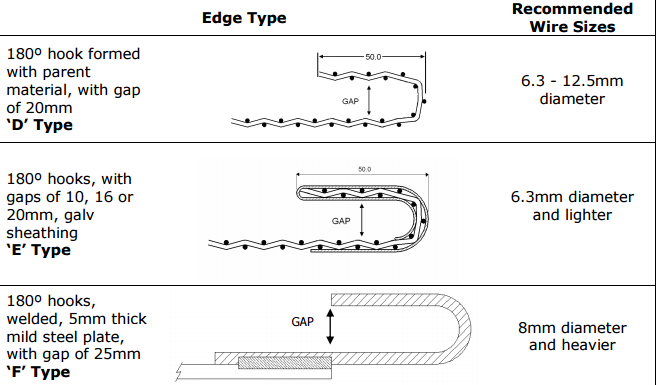

End Tensioned Hooks: Suitable for Brick Plants and other industrial applications.

Vibrating Mine Screen Mesh , Quarry Screen Mesh In Hook Edge
